How WiSentry Works

Concept

Every Ethernet jack is a security hole in your network and that this "security hole" is exploited when a device uses that jack to provide additional connection points without network management.  WiSentry works on this premise by passively examining the traffic that passes by the WiSentry Agent.   By passes by, we mean that the agents can only detect access points where they have access to the network traffic.  WiSentry agents do not "crawl" your network looking for devices.

Deployment

There are three required elements for deploying WiSentry:

1. A WiSentry Control Server must be installed on a machine on the network.
2. One or more WiSentry Agents must be deployed on segments or VLANs to be monitored.
3. A WiSentry Administrator must be installed to view the "discovery" of devices on the network.

Understanding this basic concept suggests a few scenarios on how and where WiSentry can be deployed to provide 24x7 coverage of your entire network.  The examples below are relatively simple but should serve to give a basic understanding of WiSentry Agent deployment.

WiSentry in a Non-Segmented Network

This environment really only exists in test labs and small businesses where all network devices are attached to a hub.

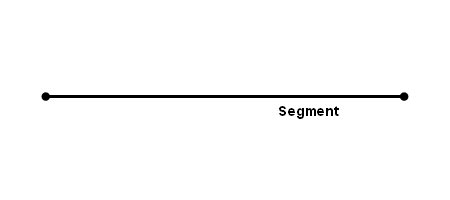

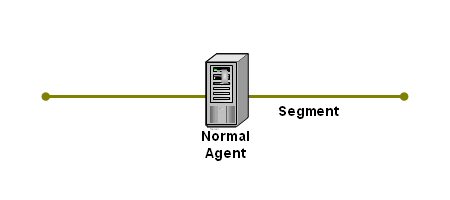

All WiSentry components are deployed on a single machine and the entire network is monitored.

WiSentry in a Segmented Network

For simple networks that route traffic with switches, WiSentry Agents can be deployed onto a single machine on each segment and monitor the entire segment.

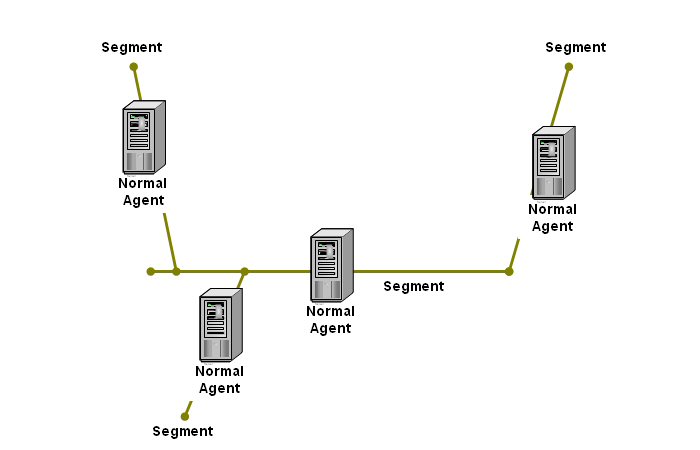

Using to represent a WiSentry Agent, the above network can be protected using WiSentry Agents in the following manner.  The WiSentry Control Server and the WiSentry Administrator can be deployed on a single machine or separate machines on the same network.

WiSentry in a Virtual LAN Environment

While segmenting traffic with physical devices is effective, network administrators have discovered that creating virtual segments of logical network groupings is more effective.  By logically grouping network groups, physical nodes can be moved as necessary while maintaining the network efficiency of segmented traffic.

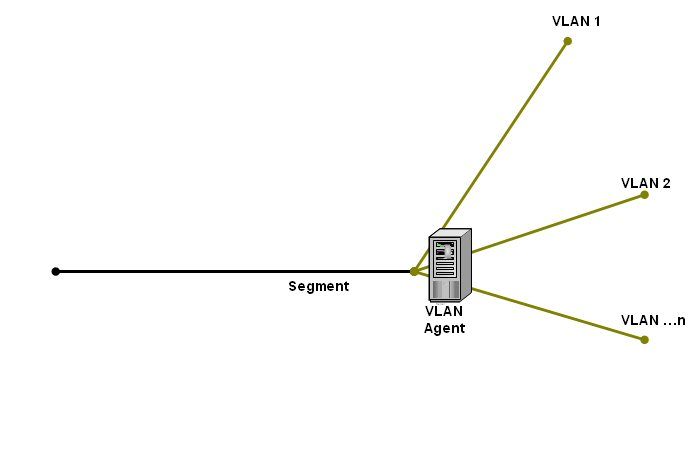

Using to represent a WiSentry Agent, the above virtual network can be protected using a single WiSentry Agent watching all VLANs.  The WiSentry Control Server and the WiSentry Administrator can be deployed on a single machine or separate machines on the same network.

WiSentry in a Mixed Mode Network

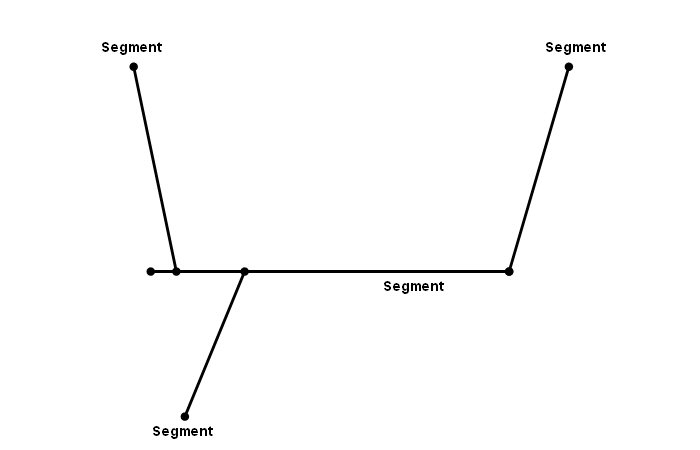

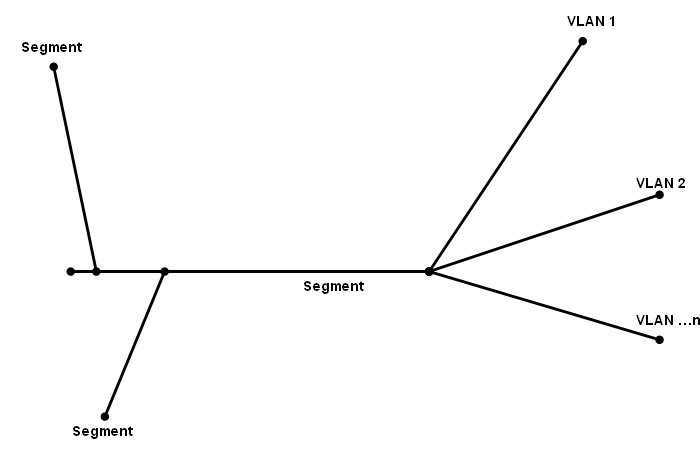

The reality to the above scenarios is that most networks live somewhere between the efficient physical segmentation and highly effective virtual network segmentation.

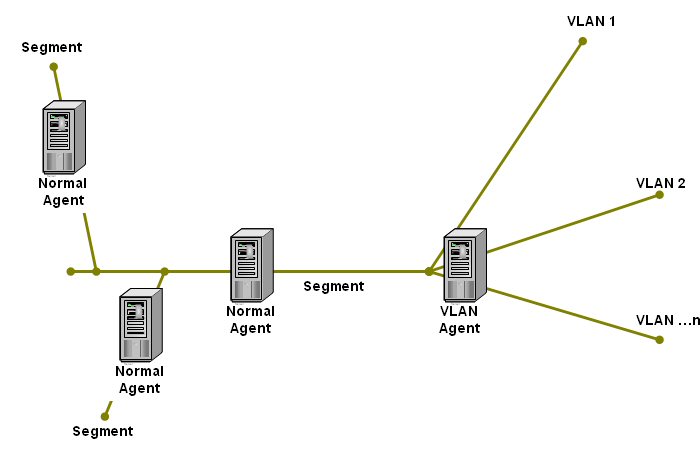

Using to represent a WiSentry Agent, the above network can be protected using WiSentry Agents on each physical segment as well using a single WiSentry Agent watching all VLANs.  The WiSentry Control Server and the WiSentry Administrator can be deployed on a single machine or separate machines on the same network.
